Description

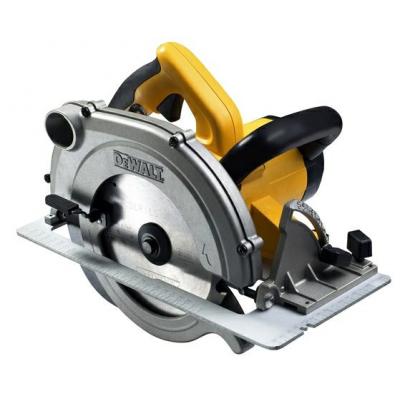

General purpose ripping crosscutting and bevelling circular saw for wood ond other construction materials. High torque motor for durability and power for cutting job site ond joinery materials. Stable block construction for low vibration running and long service life. Scale for precise cutting depth setting to 65mm. Additional handle for safe two-handed work. Variable adjustment of the mitre angle to 55-degrees. Optimum balance for safe fatigue-free operation. Protection hood far up to 95 percent sawdust extraction. Compatible with DEWALT guide-rail system Ref. DE6287 and DE6288 for converting into a convenient on-site portable alternative to a stationary panel saw. Box Contents Include - Precision 18-tooth saw blade. Rip fence. Blade spanner. Heavy-duty carrying case. Technical Specifications - Power input - 1350W. Power output - 800W. No load speed - 5000rpm. Blade diameter - 190mm. Blade boar - 30mm. Bevel capacity - 55 degrees. Maximum depth of cut at 90 degrees - 65mm. Maximum depth of cut at 90 degrees (with guide rails) - 61mm. Maximum depth of cut at 45 degrees - 45mm. Maximum depth of cut at 45 degrees (with guide rails) - 41mm. Weight - 5.4Kg. Length x Height - 355mm x 245mm.
